Kit Rafale VR2-X

vr2 iso
vr2 iso
vr2 iso
vr2 iso

Kit Rafale VR2-X

Specifications

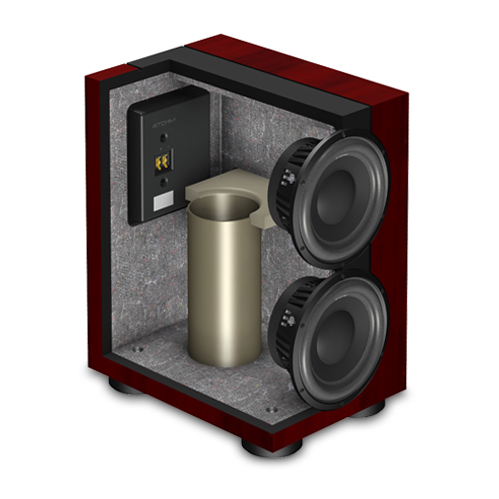

Active subwoofer : Vented box 52L
Frequency response : 30-150 Hz

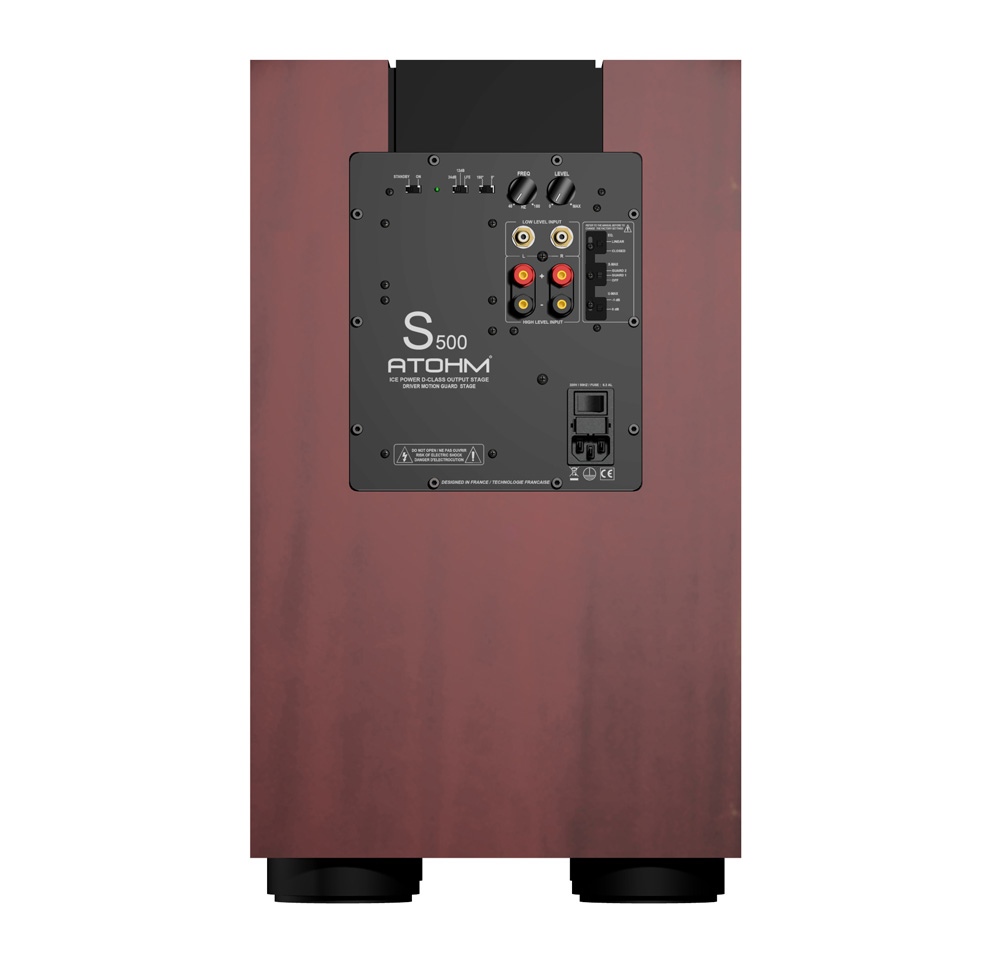

Amplifier module : ATOHM S500-XG30
Amplifier module power : 500 Wrms
Low level input : 2x cinchs
High level input : 2x 4mm banana plugs
Low pass crossover : adjustable from 38 to 150 Hz
Phase control : 0-180°
Filtering slope : adjustable 12dB-24dB-LFE
Midbass unit : LD230CRA08 (x2)
Supply voltage : 115 V / 230 V
Power consumption : 700 Wmax
Dimensions : 320*550*440 (mm) 12.6*21.6*17.3 (inch)
Weight : 29 kg / 64 lbs
Download the drawings Download the user manual FAQ-Kits
