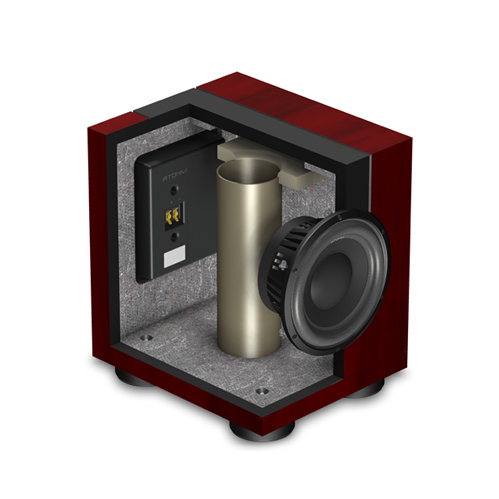

| Active subwoofer : | Vented box 27L |
| Frequency response : | 32-150 Hz |

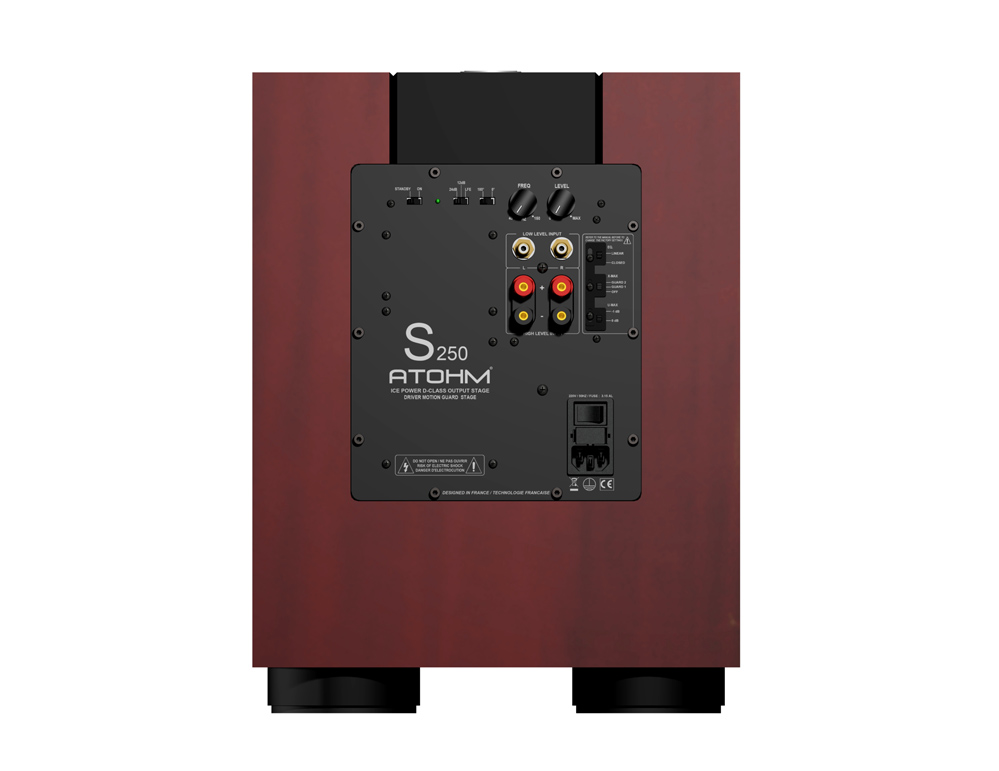

| Amplifier module : | ATOHM S250-XG30 |
| Amplifier module power : | 220 Wrms |
| Peak power : | 320 W |
| Low level input : | 2x cinchs |
| High level input : | 2x 4mm banana plugs |
| Low pass crossover : | adjustable from 38 to 150 Hz |
| Phase control : | 0-180° |
| Filtering slope : | adjustable 12dB-24dB-LFE |
| Midbass unit : | LD230CRA04 |
| Supply voltage : | 115 V / 230 V |
| Power consumption : | 320 Wmax |
| Dimensions : | 320*420*375 (mm) 12.6*16.5*14.7 (inch) |
| Weight : | 21 kg / 46.3 lbs |
