Kit Eurus SW-X

eurus SW principale
eurus SW principale
eurus SW principale
eurus SW principale
eurus SW principale

Kit Eurus SW-X

Specifications

Active subwoofer : bass extension for Eurus 1.0 (closed box 35L)

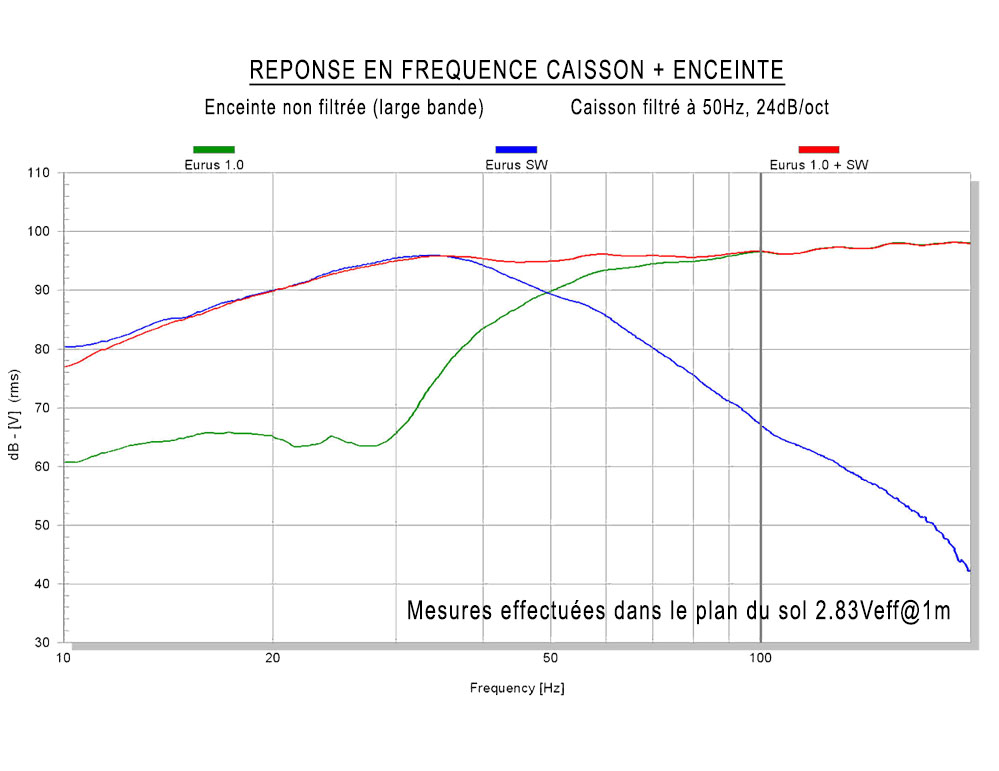

Frequency response : 23 Hz - 200 Hz
Amplifier module : Atohm S500 (SL3MX version)
Amplifier module power : 500 Wrms
Low level input : 2x cinchs
High level input : 2x 4mm banana plugs
Low pass crossover : adjustable from 38 to 150 Hz
Filtering slope : adjustable 12dB-24dB-LFE
Phase control : 0-180°
Power consumption : 700 W max
Filtering slope : 12dB-24dB-LFE adjustable

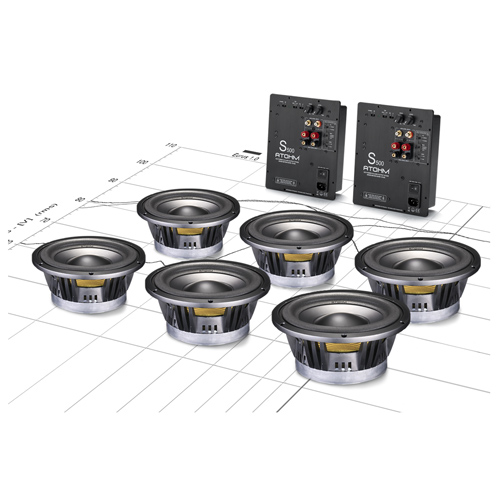

Midbass unit : LD230CRA08M (x3)
Supply voltage : 115 / 230 V
Dimensions : 815*215*315 (mm) 32*8.4*12.4 (inch)
Download the drawings Download the user manual FAQ-Kits
