LD230TDR04

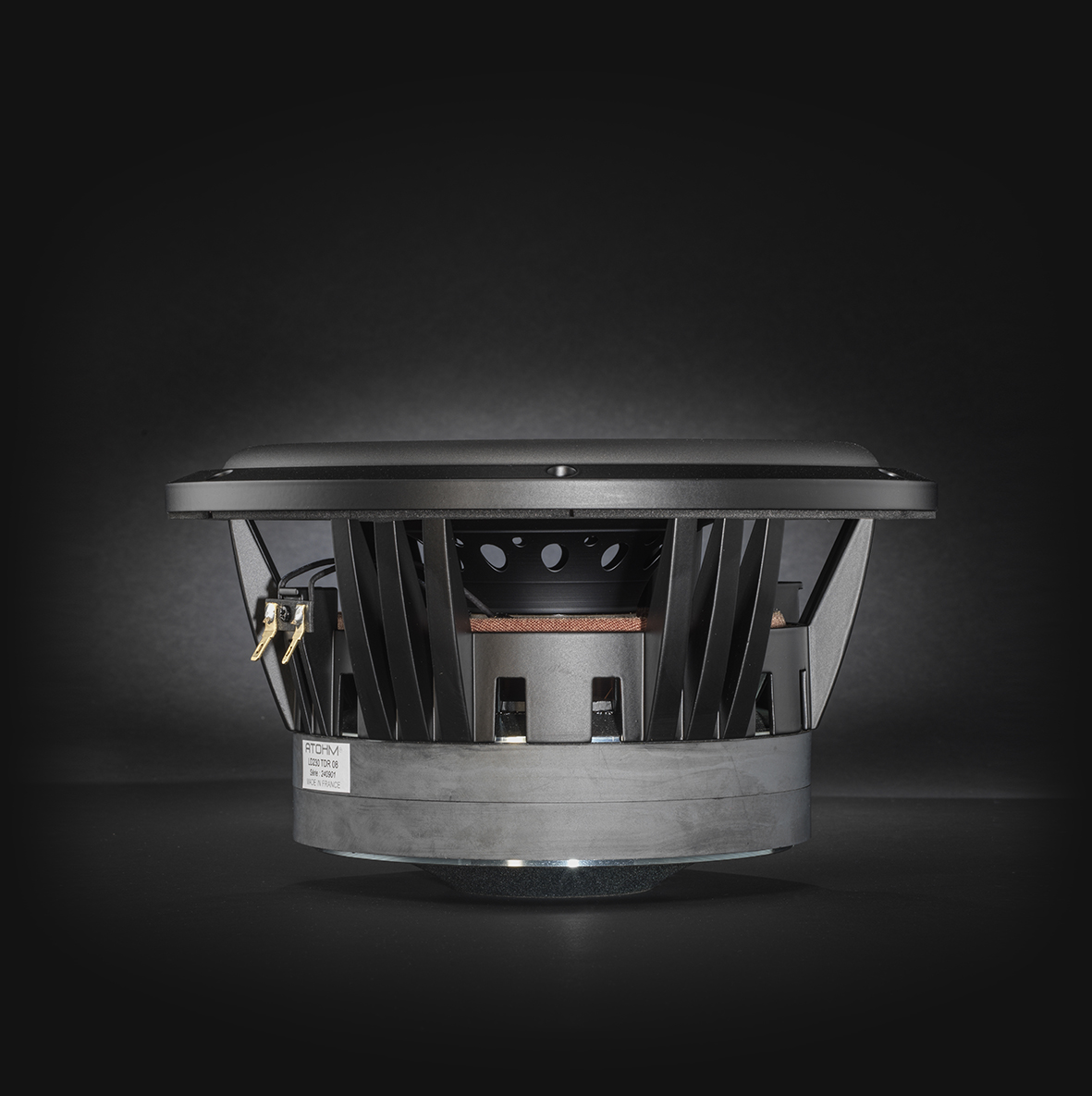

ATOHM LD230 TDR -1
ATOHM LD230 TDR -1
ATOHM LD230 TDR -1

LD230TDR04

The latest generation LD 230  « CRA » is the result of the experience and expertise acquired by our laboratory during the successive developments and  productions of the previous generations of LD210 and  LD230. Equipped following the latest refinements, these new  23 cm units are pushing the limits at the furthest of what can be expected from a driver of this diameter . Unprecedented performances whether used inside an active subwoofer or as a low frequency driver in a very High end loudspeaker.

Specifications

Power handling : 300 W Rms
Peak power : 600 W rms (1s)
Sensitivity : 91 dB/2.83V/1m
Impedance : 4 ohms
DC resistance : 3 ohms
Resonance frequency : 38.6 Hz
QTS : 0.31
QES : 0.34
QMS : 3.42
CMS : 0.33 mm/N
MMS : 64 gr
VAS : 21 L
BL : 12.1 N/A
Le : 0.47 mH (L2=0.75mH R2=2.66ohms) -LR2 model
Sd : 240 cm²
Coil diameter : 50 mm
Coil height : 32 mm
Air gap height : 6 mm
Flux density : 12000 gauss
Linear excursion : +/- 13 mm
Maximum excursion : +/- 20 mm
Recommended roll off frequency : 500 Hz
