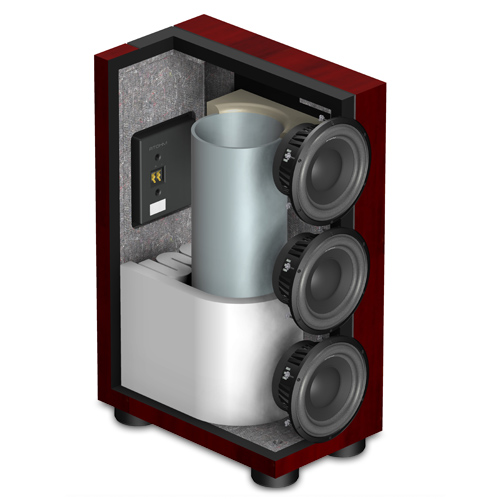

| Active subwoofer : | Vented box 90L |
| Frequency response : | 27-150 Hz |

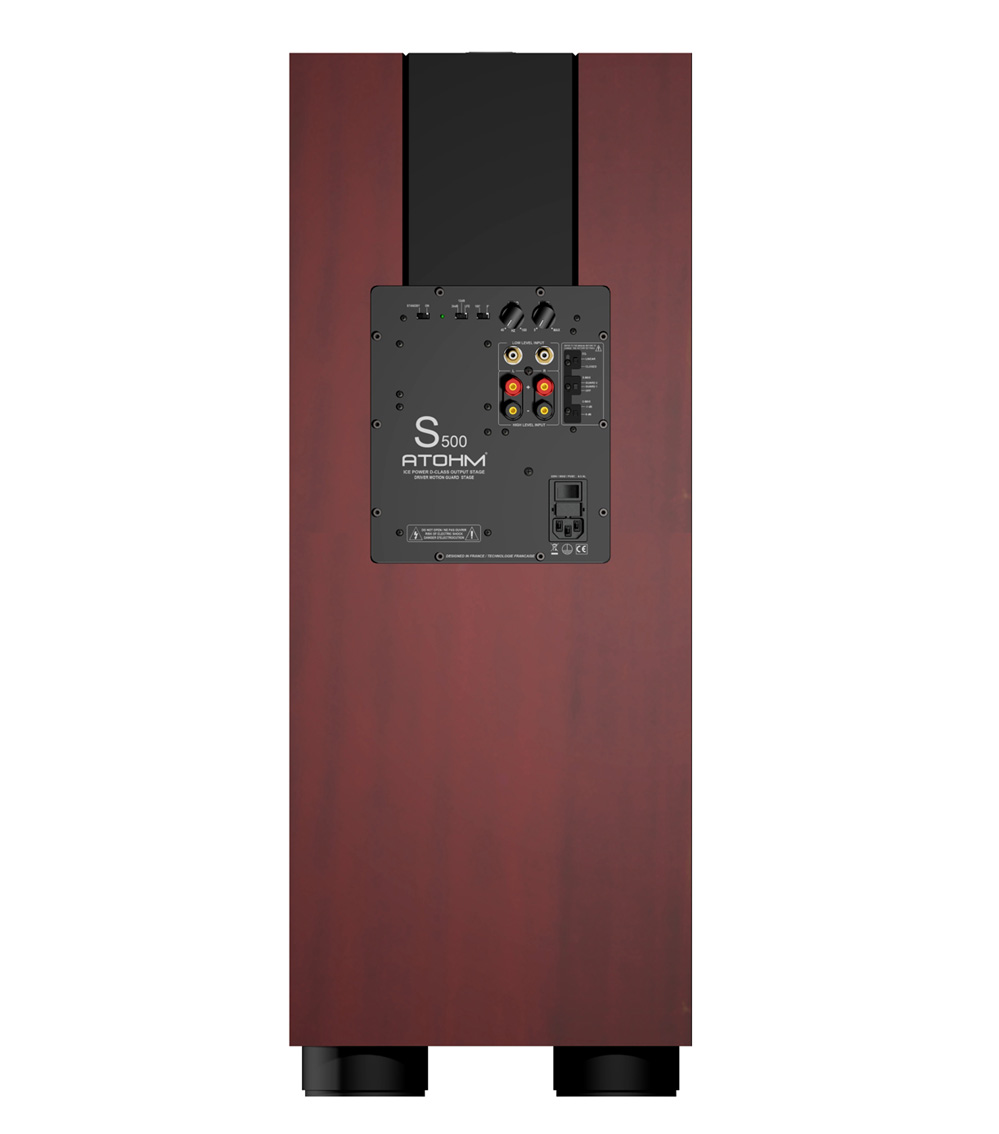

| Amplifier module : | ATOHM S500-XG30 |
| Amplifier module power : | 500 Wrms |
| Low level input : | 2x cinchs |
| High level input : | 2x 4mm banana plugs |
| Low pass crossover : | adjustable from 38 to 150 Hz |
| Phase control : | 0-180° |
| Filtering slope : | adjustable 12dB-24dB-LFE |
| Midbass unit : | LD230CRA08 (x3) |
| Supply voltage : | 115 V / 230 V |
| Power consumption : | 700 Wmax |
| Dimensions : | 320*830*530 (mm) 12.6*32.7*20.7 (inch) |
| Weight : | 47 kg / 104 lbs |
