Kit Eurus 1.0

eurus 1-0 principale
eurus 1-0 principale
eurus 1-0 principale
eurus 1-0 principale
eurus 1-0 principale

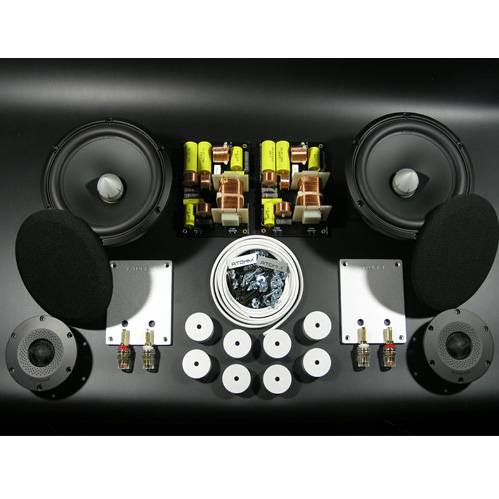

Kit Eurus 1-0



Specifications

Bookshielf speaker : 2 ways bass reflex
Power handling : 120 Wrms
Peak power : 300 W
Impedance : 6 ohms
Efficiency : 91 dB/2.83V/1M

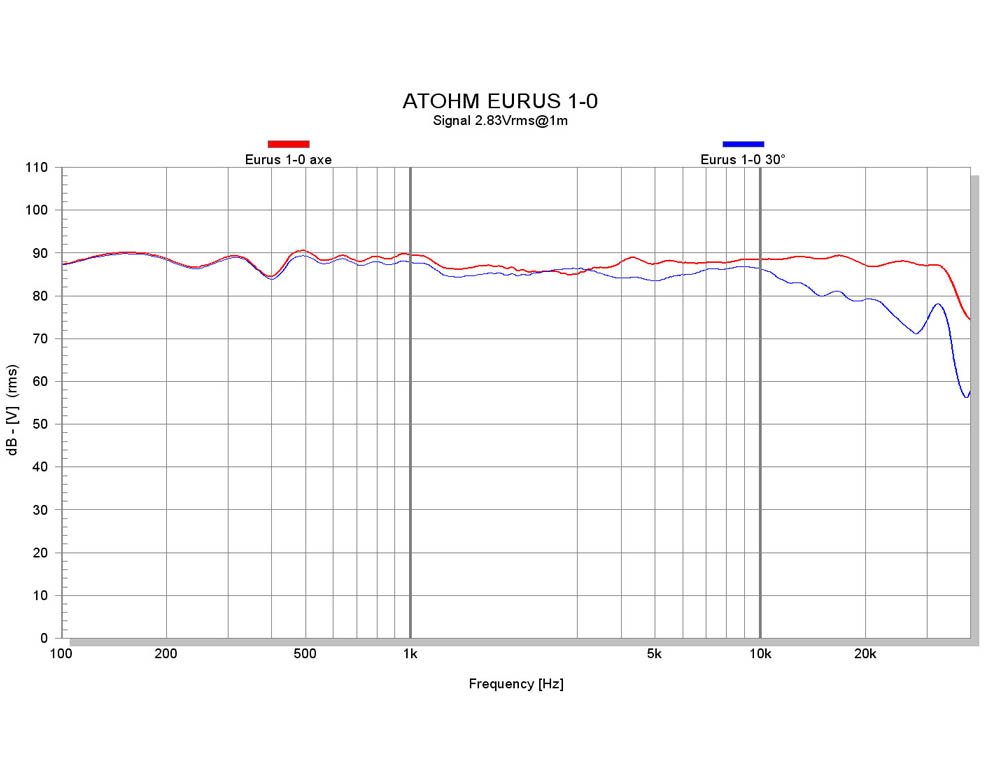

Frequency response : 44 Hz - 30 kHz
Frequency roll off : 2500 Hz
Midbass unit : LD180CR04
Tweeter : SD28ND04RD
Filtering slope : 1rst order with tweeter delay
Dimensions : 215*420*315 (mm) 8.4*16.5*12.4 (inch)
Download the drawings FAQ-Kits
