| Power handling : | 100 W Rms after filtering |
| Peak power : | 300 W Max after filtering |

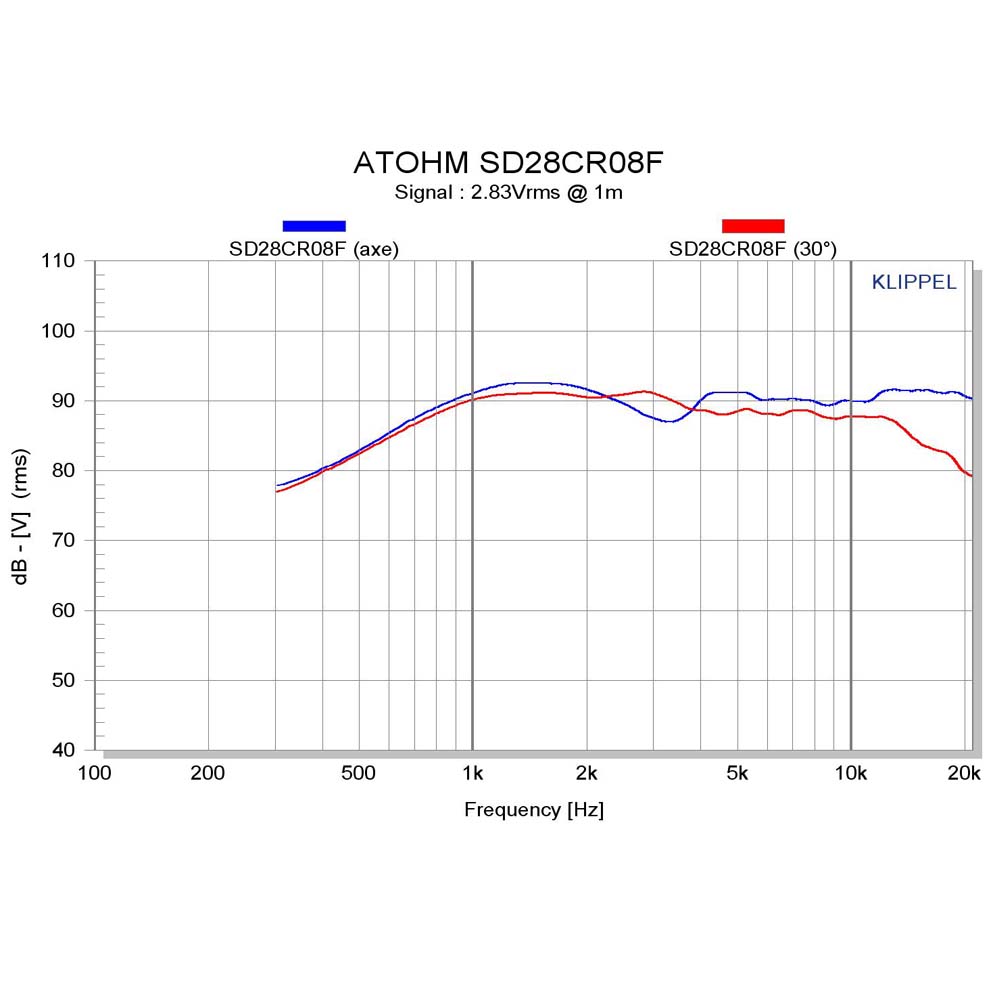

| Sensitivity : | 90 dB/2.83V/1m |
| Impedance : | 8 ohms |
| DC resistance : | 5.8 ohms |

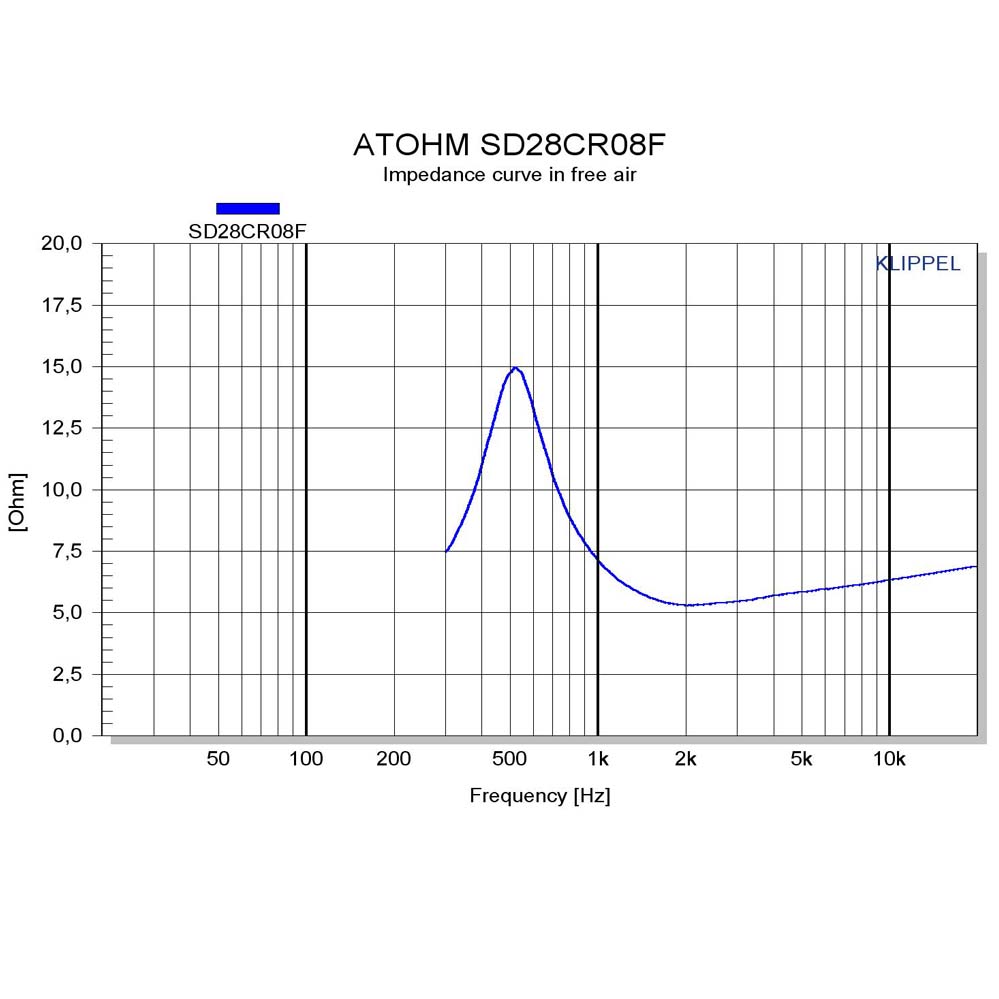

| Resonance frequency : | 660 Hz |
| Le : | 0.011 mH |
| Sd : | 6.6 cm² |
| Coil diameter : | 28 mm |
| Coil height : | 3.2 mm |
| Air gap height : | 2.5 mm |
| Flux density : | 11000 gauss |
| Linear excursion : | +/- 0.35 mm |
| Recommended roll off frequency : | 1700 Hz / 12 dB |
